YURA 601 MONOCRYSTALLINE SILICON DIFFERENTIAL PRESSURE SENSOR ASSEMBLY

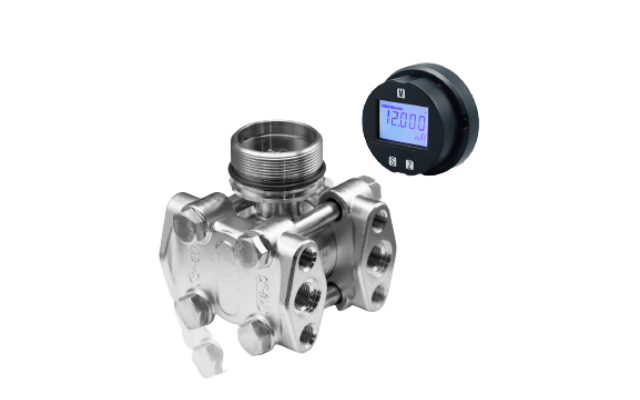

The BDSJ-DP300 monocrystalline silicon differential pressure sensor component adopts a monocrystalline silicon sensor chip made of Germany’s advanced MEMS technology and the world’s original monocrystalline silicon double-beam suspension design, achieving world-leading overvoltage performance and ensuring signal excellent stability. The built-in intelligent signal processing module realizes the perfect combination of static pressure and temperature compensation, and can provide extremely high measurement accuracy and long-term stability under a wide range of static pressure and temperature.

1 Overview

BDSJ-DP300 can accurately measure differential pressure and convert it into a 4~20mA DC output signal. The sensor can be operated locally through three buttons, or remotely through a universal handheld terminal, configuration software, or mobile APP. It can display and configure the sensor without affecting the 4~20mA DC output signal.

2 Product Feature

High accuracy

– The differential pressure sensor can perform high-accuracy measurements within the measurement range of 0.1~40kPa~4MPa. Standard calibration range accuracy: ±0.075% FS

Excellent overvoltage performance
– 1kPa standard range, one-side overvoltage reaches 1MPa 6kPa standard range, one-side overvoltage reaches 2MPa

Excellent environmental adaptability
– Intelligent pressure compensation and temperature compensation protect the transmitter from the influence of temperature and over-pressure, and minimize the comprehensive measurement error on site..

Flexible range compression
– S1, S2 range ratio: 4:1 (10:1 optional)
M1~M4 range ratio: 4:1 (10:1 optional)
L1 range ratio: 4:1 (10:1 optional)

Excellent operability and ease of use
–Equipped with 5-digit LCD digital display with backlight.
Multiple display functions (Pa, kPa, MPa, bar, mbar, %, psi, mm H2 O).
Built-in three-button shortcut operation local adjustment function.
Remote debugging through mobile APP.
Various display functions are available . Corrosion-resistant materials
Comprehensive self-diagnostic capabilities

3 Specification

Measuring principle: double-beam suspension/monocrystalline silicon sensor

■ Fluid to be measured: liquid, gas, steam

■ Output signal: 4~20mA DC+HART protocol

■ Supply voltage:

General purpose: 10.5~45V DC

Intrinsically safe explosion-proof: 10.5~26V DC

■ Spacing between power lines: 15CM or more (please avoid parallel wiring)

■ Saturation current: upper limit 20.8mA lower limit 3.8mA

■Alarm current: upper limit 22.8mA lower limit 3.6mA

(Mode can be set)

■Adjustment function: The zero point and full-scale point can be adjusted locally through the three buttons on the top of the housing or remotely using the configuration software.

■ Zero point migration: can migrate within the range of -20% to +20% of the maximum range

■ Output mode: linear output, square root output (can be adjusted remotely through configuration software)

■ Working temperature: -40~85℃

■ Diaphragm material:

Selection code	Diaphragm material
SS	SUS 316L
HC	Hastelloy
TA	Tantalum diaphragm
GD	gold plated diaphragm

■Positional effect: approximately 200Pa between horizontal and vertical positions

■Response time: 10ms

■ Influence of static pressure: ＜0.05% FS/10MPa

■ Impact of overvoltage: ＜0.05% FS/10MPa

■ Stability: ≤ 0.03% FS/year

■ Power supply impact: < 0.005% FS/V

4 Performance Parameter Table

membrane box	Range	InH ₂ O	Mmbar	mmH ₂ O	Unilateral overvoltage	Bilateral static pressure	Full temperature range accuracy (%FS)
S1	1kPa	4	10	100	1MPa	16MPa	<0.1
S2	6kPa	28	60	600	2MPa	16MPa	≤0.075
M1	40kPa	160	400	4000	5MPa	25MPa	≤0.075
M2	100kPa	400	1000	10000	7MPa	25MPa	≤0.075
M4	400kPa	1600	4000	40000	10MPa	25MPa	≤0.075
L1	4MPa	16000	40000	400000	10MPa	25MPa	≤0.075
L2	10MPa	40000	100000	1000000	10MPa	25MPa	≤0.075

5 Selection Table

model	Specification code								illustrate
BDSJ-DP300									PA-level intelligent monocrystalline silicon differential pressure sensor assembly
output signal	H								4~20Ma, HART protocol digital communication
	R								RS485
Measuring range (membrane box)		S1							-1kPa~1kPa
		S2							-6kPa~6kPa
		M1							-40kPa~40kPa
		M2							-100kPa~100kPa
		M4							-400kPa~400kPa
		L1							-4MPa~4MPa
		L2							-10MPa~10MPa
isolation diaphragm			SS						SUS 316L
			HC						Hastelloy C-276
			TA						Tantalum
			GD						SUS 316L gold plated
fill fluid				S					Silicone oil
				F					Fluorine oil
				O					vegetable oil
sealing ring					FS				fluororubber
					DS				Nitrile rubber
					TS				PTFE
Clamp block						46D16			46D clamp block, 7/16
						46D10			46D clamp block, M10
Show header							D		With LCD display
							N		none
Housing connector								N00	none
								M45	M45×1.5 thread
								G55	G55×16 thread
other									Please contact sales
