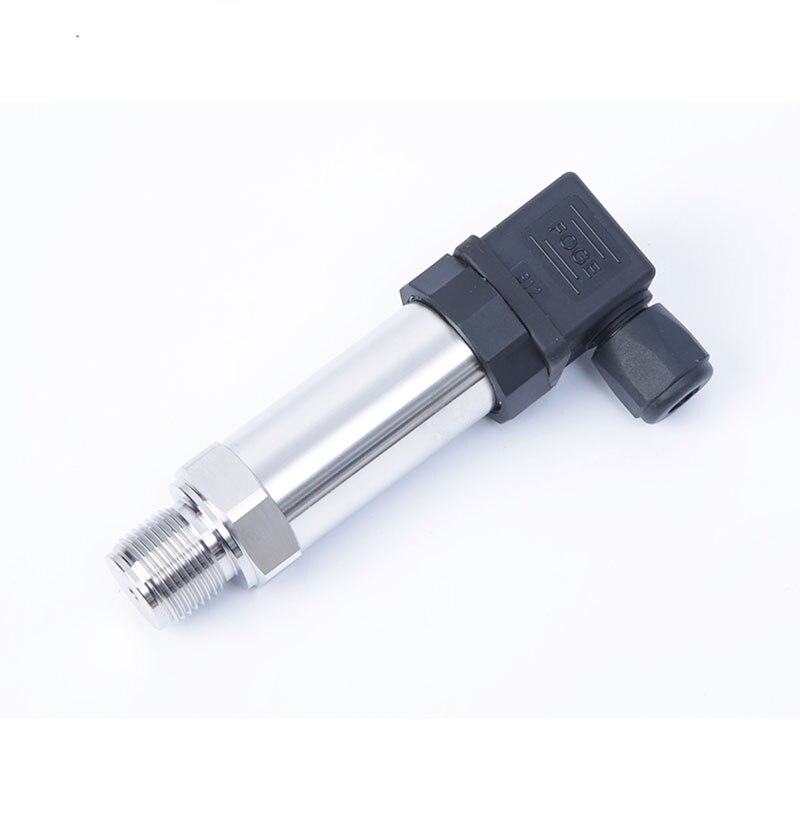

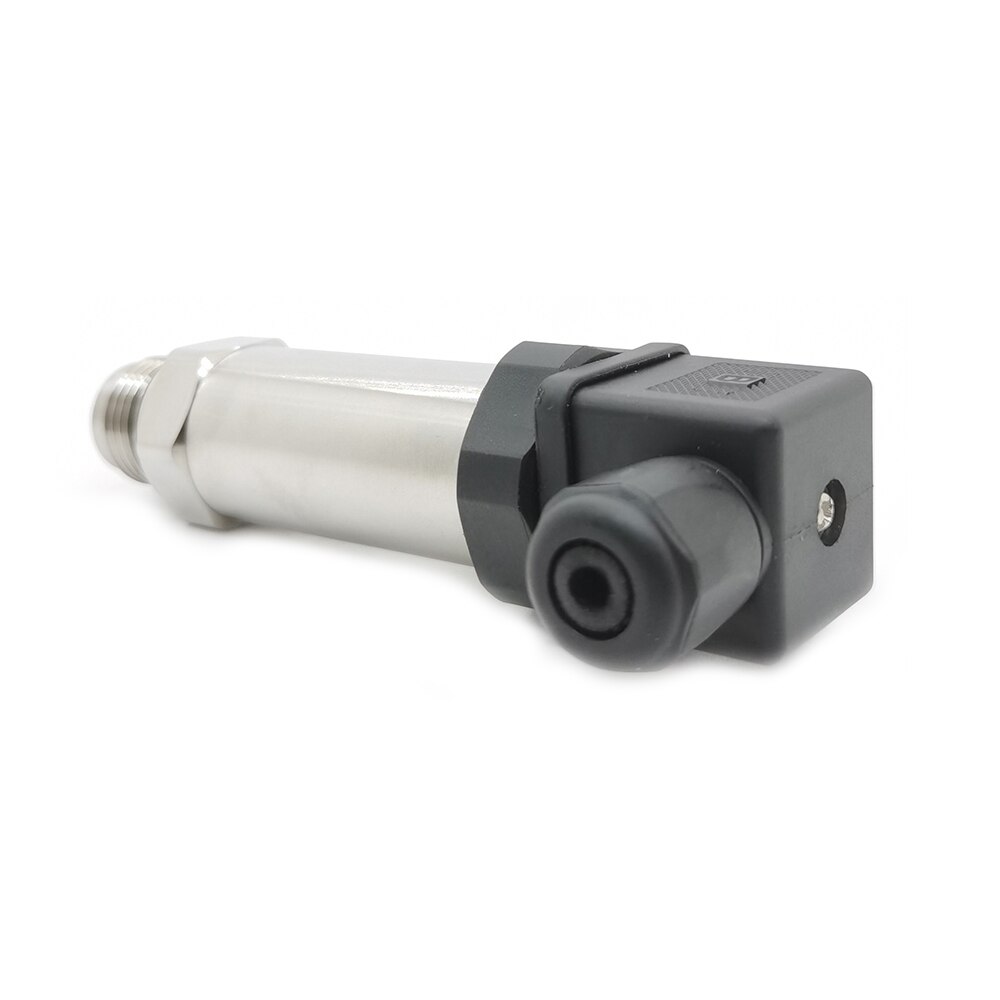

YURA101 Pressure transmitter

Piezoresistive Silicon Pressure Sensor

Application: Industrial Process control
Leak detection, Equipment monitoring
HVAC systems, Refrigeration systems
Fire suppression systems, Water treatment systems, Irrigation systems, Swimming pool systems

Measuring range: -100kPa~0~35kPa…100MPa
Process temperature: -40~85℃, -40~150℃
High temperature: -40~250℃
Material: SS 316L, SS304
Thread: M20×1.5, G1/2, G1” etc.

Product

The Yura101 pressure transmitter is a high-performance, high-reliability pressure sensor that is ideal for a wide range of industrial and commercial applications. With its high accuracy of 0.25% or 0.5%, the Yura101 pressure transmitter provides accurate and reliable measurements of pressure, even in the most demanding environments.

Yura101 pressure transmitter is made with a high-stable pressure sensor that is resistant to drift and vibration. This makes it ideal for use in applications where long-term stability and accuracy are critical. The transmitter is also housed in a durable stainless-steel 316L enclosure, making it suitable for use in harsh environments.

The Yura101 pressure transmitter is available in a variety of pressure ranges, from very low pressures to very high pressures. It is also available in a variety of electrical outputs, making it compatible with a wide range of controllers and data acquisition systems.

Features

Pressure measurement: Measuring range of -100kPa~0~35kPa…100MPa, this pressure transmitter can be used to measure a wide range of pressures, from very low to very high.

Pressure types: This pressure transmitter is available in gauge pressure (G), absolute pressure (A), and sealing gauge pressure (S) configurations, making it suitable for a variety of applications.

Output: This pressure transmitter offers both mA (current) and voltage RS485 output, making it compatible with a wide range of controllers and data acquisition systems.

Isolated structure: The isolated structure of this pressure transmitter makes it suitable for use with a variety of fluid media, including corrosive and flammable fluids.

Durable and reliable: The high-quality 316L stainless steel construction of this pressure transmitter makes it durable and reliable, even in the harshest industrial environments.

Mechanical Specifications

Diaphragm Material: Stainless Steel 316L
Titanium TA1(optional)
Process connection: Stainless Steel 316L
Stainless Steel 304

Sealing Ring: Nitrile Rubber / Viton(optional)
Electrical connection: DIN43650,
M12×1, Cable outlet,
Hirschmann connector with cable

Technical Parameters

Pressure range	-100kPa…0~35kPa…100MPa
Pressure reference	Gauge pressure
	Absolute pressure
	Sealed gauge pressure
Accuracy	0.5%FS
Accuracy	0.25%FS
Hysteresis	0.1%FS
Repeatability	0.1%FS
Temperature drift	35kPa: ±2%FS (0℃～60℃)
Temperature drift	≥35Kpa ±1.5%FS (-20℃～85℃)
Response time	≤2ms
Overload pressure	2X
Durability	10000000 pressure cycles
Ambient temperature	-20℃～85℃
Medium temperature	-30℃～85℃
	-30℃～150℃
	-30℃～250℃
Storage temperature	-40℃～125℃
Insulation resistance	≥100MΩ/250VDC
Anti-vibration	20g, 25Hz～2kHz
Shock resistance Shock	20g/1ms
Protection grade	IP65, IP67
Medium compatibility	Stainless steel 316L
	Nitric rubber
	Flour elastomer

Environmental Conditions

Protection Class: IP65, IP67
Humidity: (50% ± 10%) Relative Humidity
Ambient Pressure: (86-106) kPa
Vibration: No change observed at 10gRMS, (20-2000) Hz.
Constant Acceleration: Can withstand 100g with an 11ms duration.
Media Compatibility: Compatible with liquids or gases that are also compatible with 316L stainless steel and Nitrile Rubber / Viton(optional).

Range

Pressure range Gauge
Code	Bar	Code	Psi	Code	inWC
A1	0 … 0.05	A23	0 … 1	A41	0 … 20
A2	0 … 0.1	A24	0 … 5	A42	0 … 40
A3	0 … 0.16	A25	0 … 15	A43	0 … 60
A4	0 … 0.25	A26	0 … 25	A44	0 … 80
A5	0 … 0.4	A27	0 … 30	A45	0 … 100
A6	0 … 0.6	A28	0 … 50	A46	0 … 120
A7	0 … 1	A29	0 … 100	A47	0 … 150
A8	0 … 1.6	A30	0 … 160	A48	0 … 200
A9	0 … 2.5	A31	0 … 200	A49	0 … 250
A10	0 … 4	A32	0 … 300	A50	0 … 400
A11	0 … 6	A33	0 … 500
A12	0 … 10	A34	0 … 1,000
A13	0 … 16	A35	0 … 1,500
A14	0 … 25	A36	0 … 2,000
A15	0 … 40	A37	0 … 3,000
A16	0 … 60	A38	0 … 5,000
A17	0 … 100	A39	0 … 10,000
A18	0 … 160	A40	0 … 15,000
A19	0 … 250
A20	0 … 400
A21	0 … 600
A22	0 … 1,000

Pressure range Absolute type
Code	Bar	Code	Psi	Code	inWC
A51	0 … 0.1	A64	0 … 5	A73	0 … 40
A52	0 … 0.16	A65	0 … 15	A74	0 … 60
A53	0 … 0.25	A66	0 … 25	A75	0 … 80
A54	0 … 0.4	A67	0 … 30	A76	0 … 100
A55	0 … 0.6	A68	0 … 50	A77	0 … 120
A56	0 … 1	A69	0 … 100	A78	0 … 150
A57	0 … 1.6	A70	0 … 150	A79	0 … 200
A58	0 … 2.5	A71	0 … 200	A80	0 … 250
A59	0 … 4	A72	0 … 300	A81	0 … 400
A60	0 … 6
A61	0 … 10
A62	0 … 16
A63	0 … 25

Pressure range Vacuum and negative to positive pressure
Code	Bar	Code	Psi	Code	inWc
A82	-0.025 … +0.025	A106	-1 … 0	A115	-10 … +10
A83	-0.05 … 0	A107	-30 inHg … 0	A116	-20 … 0
A84	-0.05 … +0.05	A108	-30 inHg … +15	A117	-20 … +20
A85	-0.05 … +0.15	A109	-30 inHg … +30	A118	-40 … 0
A86	-0.05 … +0.2	A110	-30 inHg … +60	A119	-40 … +40
A87	-0.05 … +0.25	A111	-30 inHg … +100	A120	-50 … +50
A88	-0.1 … 0	A112	-30 inHg … +160	A121	-60 … 0
A89	-0.1 … +0.1	A113	-30 inHg … +200	A122	-75 … +75
A90	-0.15 … +0.15	A114	-30 inHg … +300	A123	-80 … 0
A91	-0.16 … 0			A124	-100 … 0
A92	-0.2 … +0.2			A125	-100 … +100
A93	-0.25 … 0			A126	-120 … 0
A94	-0.3 … +0.3			A127	-125 … +125
A95	-0.4 … 0			A128	-150 … 0
A96	-0.5 … +0.5			A129	-200 … +200
A97	-0.6 … 0			A130	-250 … 0
A98	-1 … 0
A99	-1 … +0.6
A100	-1 … +1.5
A101	-1 … +3
A102	-1 … +5
A103	-1 … +9
A104	-1 … +15
A105	-1 … +24

Note: Please confirm the pressure range before ordering

Ordering

YURA101	Piezoresistive Silicon Pressure Transmitter
	Code	Pressure Range
	A	Please refer Range chart
	AXXX	Custom
		Code	Pressure type
		B1	Gauge
		B2	Absolute
		B3	Sealed gauge
			Code	Output
			C1	4～20mA	C4	0.5～4.5VDC Radiation metric
			C2	0～5VDC	C5	0.5～4.5V non-radiation metric
			C3	0～10VDC	C5	1～10VDC
			CX	Custom	C6	RS-485 Communication
				Code	Accuracy
				D1	0.5%FS
				D2	0.25%FS
					Code	Size	Code	Size
					E1	G1/2″	E4	1/2″ NPT
					E2	G1/4″	E5	1/4″ NPT
					E3	M20X1.5	E6	M14X1.5
					EX	Special size	E7	1/4″ NPT Female
						Code	Electric connection
						F11	DIN43650 Connector
						F12	M12×1
						F13	Cable outlet
						FX	Custom connection
							Code	Temperature range
							G1	-30℃～85℃
							G2	-30℃～150℃
							G3	-30℃～250℃
							GX	Special
YURA101	A1	B1	C1	D1	E1	F1	G1
