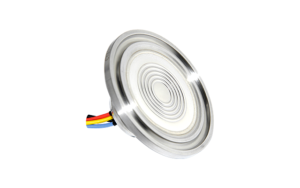

YURA400 Flush Diaphragm Pressure sensor
CYX50 series oil injection core pressure sensors use internationally advanced high-stability, high-precision silicon pressure chips, adopt stress-optimized design sintering seat, through patch, gold wire bonding, diaphragm pure plane welding, high vacuum oil injection, pressure cycle to Production by stress, high temperature aging, temperature compensation and other processes. The assembly size and sealing method of CYX50 series conform to the international 50 chuck…
1 Overview
CYX50 series oil injection core pressure sensor adopts international advanced high stability and high precision silicon pressure chip, adopts sintering seat of stress optimization design, through patch, gold wire bonding, diaphragm pure plane welding, high vacuum oil injection, pressure circulation to Production by stress, high temperature aging, temperature compensation and other processes.
The assembly size and sealing method of CYX50 series conform to the international 50 chuck interface standard, and have good interchangeability. It is mainly used in medicine, food and other industries with high cleanliness requirements for pressure testing.
2 Product features
● Measuring range -100kPa～0kPa～10kPa…6MPa
● With gauge pressure G, absolute pressure A and sealed gauge pressure S
● Constant current/constant voltage power supply
● Isolated structure, suitable for a variety of fluid media
● Φ50.5mm standard pressure oil injection core
● All 316L stainless steel
3 Main uses
● Pharmaceutical and food industry process control
● gas and liquid pressure measurement
● gas and liquid pressure measurement
● gas and liquid pressure measurement
4 Technical indicators
4.1 Electrical performance
● Power supply: ≤3.0mA; DC≤10V DC
● Electrical connection: 0.2mm2 four-color 100mm silicone rubber flexible wire
● Common mode voltage output: 50% (typical value) of current input, 40% (typical value) of voltage input
● Input impedance: 2.7kΩ～5kΩ
● Output impedance: 3.0kΩ～6kΩ
● Response time (10%～90%): <1ms
● Insulation resistance: 500MΩ/100V DC
● Allow overvoltage: 1.5 times full scale
4.2 Structural performance
● Diaphragm material: stainless steel 316L
● Shell material: stainless steel 316L
● Pressure tube material: stainless steel 316L
● Pin Lead: Gold-plated Kovar
● · Sealing ring: Silicone rubber
● Net weight: about 160g
4.3 Environmental conditions
● Vibration: no change under 10gRMS, (20～2000) Hz
● Constant acceleration: 100g, 11ms
● Media compatibility: 316L and silicone rubber compatible liquid or gas
4.4 Benchmark conditions
● Medium temperature: (25±3)℃
● Ambient temperature: (25±3)℃
● Humidity: (50%±10%) RH
● Environmental pressure: (86～106) kPa
● Power supply: (1.5±0.0015) mA DC
4.5 Standard range sensitivity output and optional pressure form
| Range | full rangeOutput (mV) | Pressure form | Range | full rangeOutput (mV) | Pressure form | |
| 0～10kPa | (30~120) ±20 | G | 0～400kPa | (40~150) ±20 | G/A | |
| 0～35kPa | (40~120) ±20 | G/A | 0～1.0MPa | (55~145) ±20 | G/A | |
| 0～70kPa | (20~140) ±20 | G/A | 0～2.0MPa | (50~160) ±20 | G/A | |
| 0～100kPa | (50~145) ±20 | G/A | 0～3.5MPa | (60~150) ±20 | G/S/A | |
| 0～200kPa | (30~125) ±20 | G/A | 0～6.0MPa | (60-130) ±20 | S |
4.6 Basic parameters
| Parameters | Typical value | Maximum | Single |
| Full scale output | 100 | 250 | mV |
| Zero output | ±1 | ±2 | mV |
| Non-linear | 0.2 | 0.5 | %FS |
| Late | 0.05 | 0.08 | %FS |
| Repeatability | 0.05 | 0.08 | %FS |
| Input/output impedance | 2.6 | 5.0 | kΩ |
| Zero temperature drift 1 | ±0.4 | ±1.0 | %FS,@25℃ |
| Sensitivity temperature drift 2 | ±0.4 | ±1.0 | %FS, @25℃ |
| Long-term stability | 0.2 | 0.3 | %FS/year |
| Excitation current | 1.5 (Maximum input voltage 10V) | mA | |
| Insulation resistance | 500（100VDC） | MΩ | |
| Compensation temperature Note 3 | 0～50;-10℃～70℃ | ℃ | |
| Operating temperature | -40～+125/150 | ℃ | |
| storage temperature | -40～+125 | ℃ | |
| Response time | ≤1 | ms | |
| Housing and diaphragm materials | 316L stainless steel | ||
| O-ring | Silicone Rubber | ||
| Measuring medium | Fluid compatible with 316L, silicone rubber | ||
| Life (25℃) | ＞1×108 pressure cycle (80%FS) | Times | |
| Filling medium | Silicone oil | ||
| Sealing ring | Various specifications, customized by users | ||
Note 1, Note 2: The typical value of zero to 10 kPa temperature drift and sensitivity temperature drift is 0.5%FS@25℃, and the maximum value is 1.2%FS@25℃. Note 3: For 200kPa and below ranges, the compensation temperature is 0～50℃; for more than 200kPa, the compensation temperature is -10℃～70℃. | |||
5 Type selection structure
5.1 Core model selection model and outline drawing
| 系 列 | 量 程 | 型 号 | 外 形 图 |
| CYX50 | -100kPa～7MPa | CYX5001 (-40℃～125℃) |  |
CYX5002 (-40℃～150℃) |  |
6 Schematic diagram and wiring
IN+(red line)-power supply positive IN-(black line)-power supply negative S+(yellow line)-output positive S-(blue line)-output negative
7 Application tips
● Pay attention to protect the front diaphragm of the pressure core and the compensation circuit board at the rear end, so as not to damage the performance of the pressure core or damage the core.
● Do not press the metal diaphragm with your hands or hard objects to avoid damage to the core due to chip deformation or perforation.
● The vent pipe at the rear of the G-type core body should be kept open to the atmosphere; it is forbidden for water, water vapor or corrosive media to enter the reference cavity at the rear of the core body.
● Avoid dropping, bumping, etc., which will affect the stability of the product.
● If there is a change in the pin lead, the actual physical label of the core shall prevail.
8 Selection guide
*工艺标识：f表示通用工艺，Y表示负压工艺。
