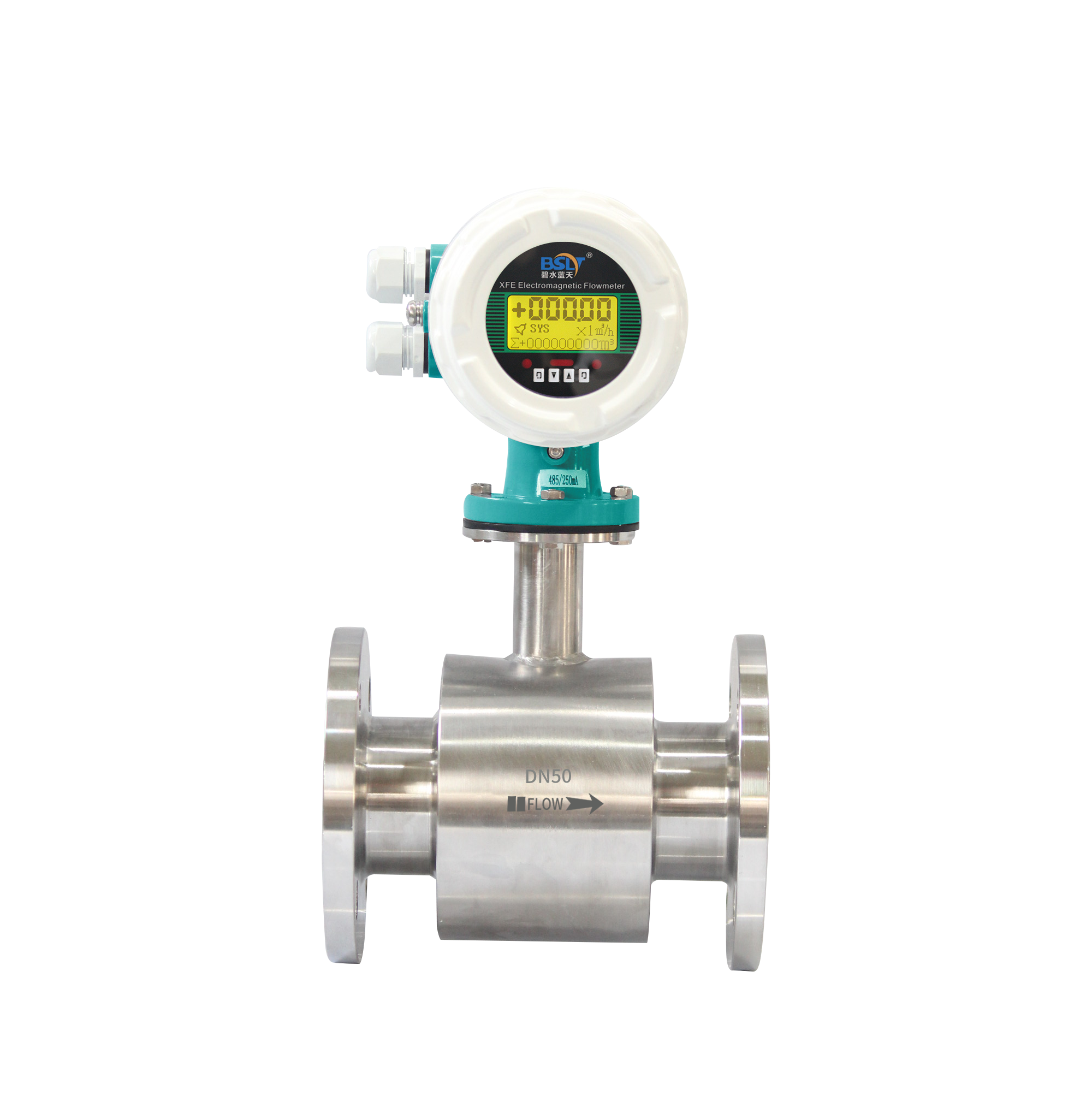

Ceramic-lined electromagnetic flowmeter
Ceramic-lined electromagnetic flowmeter
55 customer reviews
Technical parameters: 1. Measuring fluid: Conductive liquid; 2. Accuracy class: 0.5 (0.2 class available upon special customization); 3. Repeatability: 0.15%, 0.25%; 4. Fluid...
Technical parameters:
1. Measuring fluid: Conductive liquid
2. Accuracy level: 0.5 ( 0.2 level can be customized )
3. Repeatability: 0.15% , 0.25%
4. Fluid temperature: -25 ℃ ~180 ℃ ~250 ℃
5. Medium flow velocity range: 0.3~12m/s (extended to 0.1-15m/s )
6. Conductivity : 5 μS /cm
7. Electrode materials: 316L stainless steel, Hastelloy B , Hastelloy C , tantalum, titanium, platinum-iridium alloy, tungsten carbide, nickel, etc.
8. Lining materials: Neoprene rubber (CR) , fluoroplastics ( F4 , F46 , PFA, etc.), polyurethane rubber, alumina ceramics, etc.
9. Flange material for the body: 20# carbon steel, 304 stainless steel, other materials (special orders required)
10. Installation methods: flange connection, clamp connection, threaded connection, clamp, oil-joint connection, insertion type, etc.
11. Protection rating: IP65 , IP67 , IP68
12. Converter power supply: Four power supply options are available : 220V ± 20% , 24VDC , battery power, and solar power.
13. Signal Output: Pulse output, 4-20mA output, 4-20mA with HART bus, RS485 MODBUS protocol, GPRS wireless transmission, DP and PA protocols
14. Structural forms: integrated type, split type (with 10m standard cable), plug-in type
15. Power consumption: 15W
16. Working environment: Ambient temperature: -25 ℃ ~ 60 ℃ , humidity: 5% ~ 90%
17. Explosion-proof rating: Explosion-proof EX d ib mb IIc T6Gb
18. Converter display interface: The LCD display interface and operation interface can be switched between Chinese and English (other languages can be customized). It can display instantaneous flow rate and cumulative flow rate, and there are multiple flow rate units to choose from.
19. Categories: Sanitary type, diving type, high pressure type, scraper type, high temperature type, newly launched electromagnetic heat meter series.
