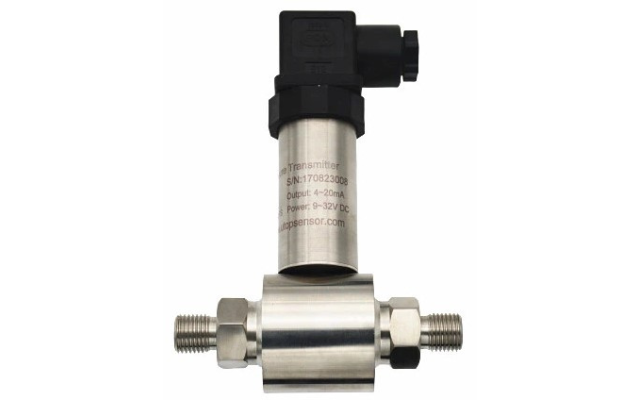

YURA401 Differential Pressure Transmitter
YURA401 Differential Pressure Transmitter
55 customer reviews
Piezoresistive Silicon Differential Pressure Transmitter
Application: Petroleum industry, Chemical industry, Electricity industry, Hydrology, Chemical processing, Oil and gas production, Power generation, Water, and wastewater treatment.
Measuring range: -100kPa~0~35kPa…3.5MPa
Process temperature: -40~85?
Material: SS 316L, SS304
Process connection: M20×1.5, G1/4 M, G1/2 M, G1/4 female etc.
The Yura401 Differential Pressure Transmitter is a high-performance, high-reliability pressure sensor that is ideal for a wide range of industrial and commercial applications. With its high accuracy of 0.25% or 0.5%, the Yura401 Differential Pressure Transmitter provides accurate and reliable measurements of pressure, even in the most demanding environments.
Yura401 Differential Pressure Transmitter is made with a high-stable pressure sensor that is resistant to drift and vibration. This makes it ideal for use in applications where long-term stability and accuracy are critical. The transmitter is also housed in a durable stainless-steel 316L enclosure, making it suitable for use in harsh environments.
The Yura401 Differential Pressure Transmitter is available in a variety of pressure ranges, from very low pressures to very high pressures. It is also available in a variety of electrical outputs, making it compatible with a wide range of controllers and data acquisition systems.
Features
Pressure measurement: Measuring range of -100kPa~0~35kPa…3.5MPa, this Differential Pressure Transmitter can be used to measure a wide range of pressures, from very low to very high.
Output: Differential Pressure Transmitter offers both mA (current) and voltage RS485 output, making it compatible with a wide range of controllers and data acquisition systems.
High accuracy: 0.25% or 0.5%, even in the most demanding environments
High reliability: Made with a high-stable pressure sensor that is resistant to drift and vibration
Durable construction: Housed in a durable stainless steel 316L enclosure
Wide pressure range: Available in a variety of pressure ranges, from very low to very high pressures
Variety of electrical outputs: Compatible with a wide range of controllers and data acquisition systems
Easy installation and maintenance: Can be mounted directly to the process vessel or pipe
Sanitary construction: Available in sanitary construction, suitable for use in food and beverage processing and pharmaceutical manufacturing applications
Mechanical Specifications
Diaphragm Material: Stainless Steel 316L
Titanium TA1(optional)
Process connection: Stainless Steel 316L
Stainless Steel 304
Sealing Ring: Nitrile Rubber / Viton(optional)
Electrical connection: DIN43650,
M12×1, Cable outlet,
Hirschmann connector with cable
Technical Parameters
| Pressure range | -100kPa…0~35kPa…3.5MPa |
| Pressure reference | Differential Pressure |
| Accuracy | 0.5%FS |
| 0.25%FS | |
| Hysteresis | 0.1%FS |
| Repeatability | 0.1%FS |
| Temperature drift | 35kPa: ±2%FS (0℃～60℃) |
| ≥35Kpa ±1.5%FS (-20℃～85℃) | |
| Response time | ≤2ms |
| Overload pressure | 2X |
| Durability | 10000000 pressure cycles |
| Ambient temperature | -20℃～85℃ |
| Medium temperature | -30℃～85℃ |
| Storage temperature | -40℃～125℃ |
| Insulation resistance | ≥100MΩ/250VDC |
| Anti-vibration | 20g, 25Hz～2kHz |
| Shock resistance Shock | 20g/1ms |
| Protection grade | IP65, IP67 |
| Medium compatibility | Stainless steel 316L |
| Nitric rubber | |
| Flour elastomer |
Environmental Conditions
Protection Class: IP65, IP67
Humidity: (50% ± 10%) Relative Humidity
Vibration: No change observed at 10gRMS, (20-2000) Hz.
Constant Acceleration: Can withstand 100g with an 11ms duration.
Media Compatibility: Compatible with liquids or gases that are also compatible with 316L stainless steel and Nitrile Rubber / Viton(optional).
Range
| Range | full range Output (mV) | Pressure form |
| 10kPa | (30~120) ±20 | D |
| 35kPa | (40-120) ±20 | D |
| 70kPa | (20~140) ±20 | D |
| 100kPa | (50-145) ±20 | D |
| 200kPa | (30~125) ±20 | D |
| 400kPa | (40~150) ±20 | D |
| 1.0MPa | (55~145) ±20 | D |
| 2.0MPa | (50-160) ±20 | D |
| 3.5MPa | (60-150) ±20 | D |
Note: Please confirm the pressure range before ordering
Ordering
| YURA401 | Piezoresistive Silicon Differential Pressure Transmitter | |||||||
| Code | Pressure Range | |||||||
| A | Please refer Range chart | |||||||
| AXXX | Custom | |||||||
| Code | Pressure type | |||||||
| B1 | Differential | |||||||
| Code | Output | |||||||
| C1 | 4～20mA | C4 | 0.5～4.5VDC Radiation metric | |||||
| C2 | 0～5VDC | C5 | 0.5～4.5V non-radiation metric | |||||
| C3 | 0～10VDC | C5 | 1～10VDC | |||||
| CX | Custom | C6 | RS-485 Communication | |||||
| Code | Accuracy | |||||||
| D1 | 0.5%FS | |||||||
| D2 | 0.25%FS | |||||||
| Code | Size | Code | Size | |||||
| E1 | G1/2” | E3 | G1” | |||||
| E2 | G1/4” | E4 | M20×1.5 | |||||
| EX | Special size | E5 | G1/4” female | |||||
| Code | Electric connection | |||||||
| F11 | DIN43650 Connector | |||||||
| F12 | M12×1 | |||||||
| F13 | Cable outlet | |||||||
| FX | Custom connection | |||||||
| Code | Temperature range | |||||||
| G1 | -30℃～85℃ | |||||||
| GX | Special | |||||||
| YURA401 | A1 | B1 | C1 | D1 | E1 | F1 | G1 | |
