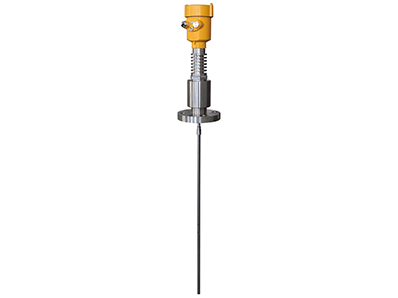

YURA705 guided wave radar level gauge
YURA705 guided wave radar level gauge
55 customer reviews
Applicable media: Liquids, especially liquids in high temperature and high pressure environments.
Applications: Sealed containers, measurement of high-pressure liquids.
Explosion-proof certification: Exia IIC T6 Ga/ Exd IIC T6 Gb
Measurement range: 15m
Frequency: 500MHz-1.8GHz
Applicable Media: Liquids, especially those in high-temperature and high-pressure environments.
Applications: Sealed tanks, measurement of high-pressure liquids .
Explosion-proof Certification: Exia IIC T6 Ga/ Exd IIC T6 Gb
Measuring Range: 15m
Frequency: 500MHz-1.8GHz
Antenna: Single rod or single cable type
Measuring Accuracy: ±10mm
Process Temperature: (-200～400)℃
Process Pressure: (-0.1～40)MPa
Signal Output: (4～20)mA/HART
Local Display: Four-digit programmable LCD
Power Supply: Two-wire (DC24V)/Four-wire (DC24V/AC220V)
Housing: Aluminum single-chamber/Aluminum double-chamber/Plastic/Stainless steel single-chamber
Process Connection: Threaded/Flanged (optional)
