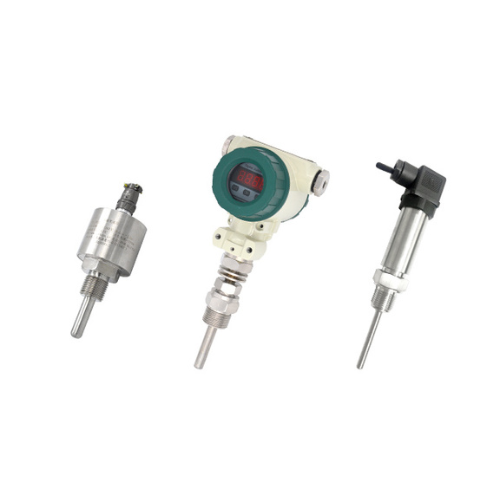

Temperature transmitters
Temperature transmitters
55 customer reviews
YURAT101 series temperature transmitters use semiconductor temperature sensors, platinum resistances, etc. as temperature sensitive components, and output standard industrial signals after temperature compensation, digital circuit correction and signal conditioning. Each type of product has undergone careful design, component screening, process verification and curing, cyclic loading and aging, environmental simulation testing and other processes to ensure that each product is stable and reliable.
Features
compact size, easy to install
high stability, low drift
variety of structures to choose from
it can be used in various industrial occasions and has strong versatility
The main uses
With its excellent accuracy and reliability, YURAT101 series temperature transmitters are used for temperature measurement in many occasions. Especially in railway locomotives, coal mines, oil fields, chemicals, civil explosions and other industries, accuracy and reliability have been verified for a long time.
Technical indicators
range（℃） | -60～450（ optional range ） | ||
accuracy （℃） | 0.25 (customized) | 0.5 | 1.0 |
long-term stability (%FS/year) | ≤0.25 | ≤0.5 | ≤1.0 |
operating voltage （VDC） | +15～+30（ calibration value is +24） | ||
output signal | (4mA～20mA）、0～10V、RS485、I2C | ||
working environment temperature (with header ）（℃） | -30～+60 | ||
load resistance （Ω） (4mA～20mA） | R=(U-15)/0.02-RD among them: U is the power supply voltage RD is the internal resistance of the cable | ||
response time （10%～90%）sec. | 20（ typical value ） | ||
measuring medium | fluid compatible with 304 and 316L | ||
shell material | 304、316L | ||
interface | 304, 316L optional | ||
protection level | IP65 | ||
Transmitter size
Recommended optional connector size for YURAT101 series transmitter
Electrical connections
DIN 6043 socket
Aviation socket
Direct cable outlet
Industrial terminal
Order guide
Model characteristics and appearance
YURAT101 series | ||
Model | Features | Pattern |
YURAT1011 | 1、Horsman connector； 2、Standard appearance； 3、Without heat sink； 4、-50℃～80℃. |
|
YURAT1012 | 1、Horsman connector； 2、Standard appearance； 3、With 3 heat sinks； 4、-50℃～150℃. |
|
6.2 Selection Guide
YURAT101 | temperature transmitter | ||||||||||
range(℃) | -60～450（ optional range ） | ||||||||||
code name | supply voltage | ||||||||||
U1 | 24VDC | ||||||||||
U2 | 12VDC | ||||||||||
U3 | other power supply methods | ||||||||||
code name | output signal | ||||||||||
E1 | 4mA～20mADC | ||||||||||
V3 | 0VDC～10VDC | ||||||||||
V5 | other power supply methods | ||||||||||
R4 | RS485 communication Interface | ||||||||||
H | HART® protocol communication | ||||||||||
Ⅱ | I2C protocol communication | ||||||||||
code name | shape interface | ||||||||||
electrical Interface | mechanical interface | ||||||||||
Horsman socket （J1） | G¼ | ||||||||||
Aviation socket （J2） | G½ | ||||||||||
others（J5） | others （ direct label ） | ||||||||||
code name | additional features | ||||||||||
M1 | 4-digit LCD digital display header | ||||||||||
M2 | 4-digit LED digital display header | ||||||||||
i | intrinsically safe explosion-proof type ExiaⅡCT6 | ||||||||||
QT | other functions | ||||||||||
