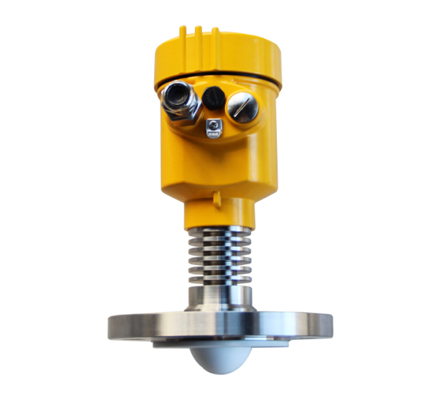

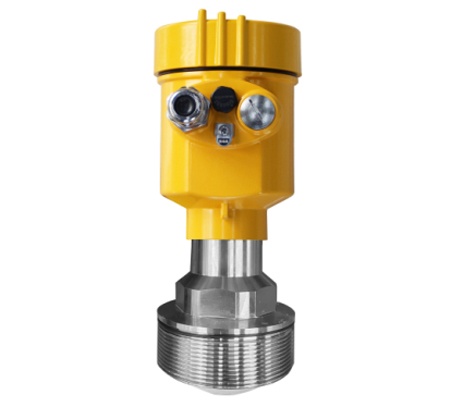

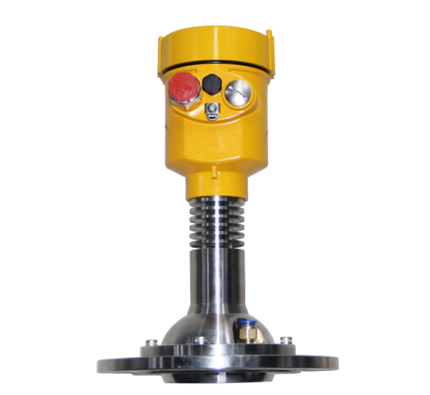

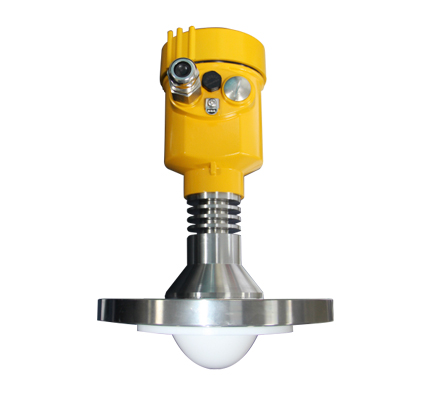

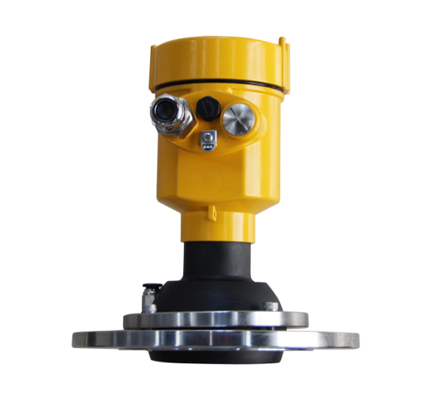

YURA-FMW21S Frequency Modulation

55 customer reviews

Measuring Medium: Solid
Measuring Range: 0.1 m–30 m / 0.3 m–150 m
Process Connection: Flange ? DN80
Process Temperature: 40°C to +80°C
Process Pressure: 0.1 to 0.3 MPa
Accuracy: ±5 mm
Protection Rating: IP67
Center Frequency: 80 GHz
Power Supply: Two-wire (DC 24V) / Four-wire (AC 220V) / Six-wire (DC 12V–24V)
Housing Material: Aluminium / Plastic / Stainless Steel
Signal Output: Two-wire 4...20 mA with HART Protocol / Four-wire 4...20 mA / RS485 (Modbus)

  • Description

Product Overview

The YURA-FMW Series features advanced 80GHz frequency-modulated radar technology for precise and reliable level measurement.
With a measurement range of up to 150 meters, this series is designed for challenging industrial applications involving solids, high temperatures, and high pressures.

An optimized antenna design and a next-generation high-speed microprocessor enable superior signal analysis and rapid data processing. The result is exceptional accuracy, stability, and performance across a wide range of operating conditions.



Working Principle

The YURA-FMW radar level sensor operates based on the Frequency-Modulated Continuous Wave (FMCW) principle.

The radar emits electromagnetic waves from the top of the tank toward the medium’s surface.

These waves are reflected back to the radar and received by the sensor.

The frequency difference (δf) between the transmitted and received signals is directly proportional to the distance (R) between the radar and the material surface.

The relationship can be expressed as:

R = (C × δf) / (2 × K)



Where:

R = distance to the material surface

C = speed of light

δf = frequency difference

K = modulation slope

Since C and K are known constants, the radar accurately calculates the distance R by measuring the frequency difference δf.

By subtracting this distance (the “empty height”) from the total tank height, the instrument precisely determines the actual material level inside the tank.

Technical Parameters

Process Connection: Flange
Flange Material: PP / PTFE / Stainless Steel / Stainless Steel + PTFE

Housing Material: Cast Aluminum / Stainless Steel / ABS Plastic

Sealing Between Housings: Silicone Rubber
Shell Window: Polycarbonate
Grounding Terminal: Stainless Steel


Power Supply Voltage:

Four-wire System (Standard Type): (198–242) V AC

Dual-Cavity Shell: (15–28) V DC

Four-wire System (Low Voltage): 100 V AC

Power Consumption: Max 80 mA (DC 24V / 2W)
Permissible Ripple:

<100 Hz: Uss < 1 V

(100–100 kHz): Uss < 10 mV

Cable Parameters:

Cable Inlet/Plug: 1 × M20×1.5 Cable Inlet

1 × Blind Block M20×1.5

Grounding Terminal Conductor Cross-Section: 2.5 mm²

Output Parameters:

Output Signal: 4–20 mA / RS485 (Modbus)

Resolution: 1 mm

Fault Signal (Current Output Fixed): 20.5 mA / 22 mA / 3.9 mA

Response Time: Adjustable (0–20 s)

Blind Zone: 0.1 m / 0.2 m / 0.3 m

Maximum Measuring Distance: 150 m

Measuring Interval: Approx. 1 second (depending on settings)

Adjustment Time: Approx. 1 second (depending on settings)


Temperature Range:

Storage & Transportation: −40°C to +80°C

Process Temperature:

YURA-FMW11S: −40°C to +100°C

YURA-FMW11: −40°C to +80°C

YURA-FMW12: −40°C to +100°C

YURA-FMW13: −40°C to +120°C / −40°C to +110°C (threaded connection)

YURA-FMW14: −40°C to +200°C

Relative Humidity: < 95%
Maximum Pressure: 2.5 MPa
Vibration Resistance: 10 m/s² (10–150 Hz)
