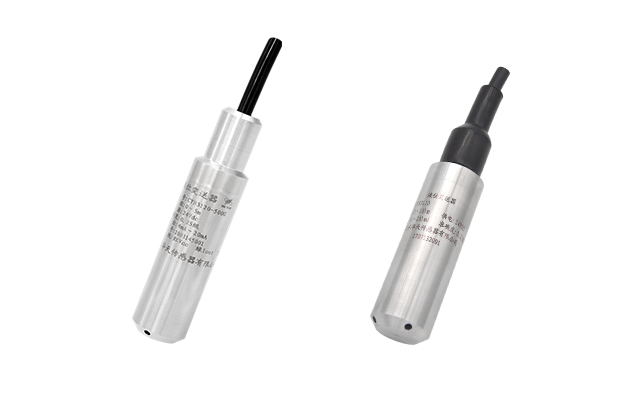

Hydrostatic level transmitter
Hydrostatic level transmitter
55 customer reviews
Hydrostatic level transmitter is designed with high-reliability pressure-sensing elements, including silicone piezoresistive sensors, ceramic capacitors, or sapphire sensors, carefully chosen based on the specific requirements of various industries. After automatic temperature compensation and digital circuit correction, along with advanced signal conditioning, the transmitter outputs signals suitable for standard industrial applications and network integration. The manufacturing process follows rigorous quality control standards, ensuring precision at every step, from component selection to process curing. Each unit undergoes thorough testing, including pressure cycling, aging, and environmental simulation, to ensure long-term stability and reliability.
The hydrostatic level transmitter offers a versatile design for use across a wide range of industries, while also providing specialized solutions tailored to unique application needs. We take the time to thoroughly understand each customer's environment and requirements, selecting the most suitable product. Customization options are also available, ensuring that every user receives a product optimized for their specific needs and delivers the best possible performance.
- Application
Hydrostatic level transmitter has been widely used in all kinds of fluid measurement users for many years, especially in coal mine, oil field, petrochemical, environmental protection, medicine, water and other industries, for its excellent accuracy and reliability.
- Technical Index
Range | 0m～0.5m…300m | |||
Pressure form | G (gauge pressure) / A (absolute pressure) | |||
Output signal | 4~20mA (Hart protocol could be added) | |||
RS485 | ||||
0~10V(range could be customized) | ||||
Accuracy | 0.1 (customized) | 0.25 (typ.) | 0.5 (max) | |
Long-term stability (%FS/year) | ±0.1(typ.) | ±0.2(max) | ||
Zero Temperature Drift (%FS/℃) | ±0.02 | ±0.03 | ||
Sensitivity Temperature Drift (%FS/℃) | ±0.02 | ±0.03 | ||
Compensation Temperature (℃) | 0～50 | -10～65 | ||
Working Voltage (VDC) | +12～+30 | |||
Medium Temperature (℃) | -30～+65 | |||
Load resistance (Ω) | Current type: ≤(U-12)/0.02(Ω) | |||
Measuring medium | Liquid compatible with SS316L | |||
Diaphragm material | SS316L | |||
Shell material | SS304 | |||
Protection level | IP68 | |||
- Model & Structure (unit: mm)
Model | Feature | Outline Drawing |
HLT3120 | 1. fully welded structure 2. pressure sensitive diaphragm moves forward, easy to clean |  |
HLT3110 | 1. classic structure 2. o-ring sealed 3. standard shape, special product for coal mine |  |
HLT3128 | 1. level and temperature integrated type 2. fully welded structure |  |
HLT3124 | 1. special product for deep water, up to 300m 2. fully welded structure, housing material can be customized |  |
- Notes
- Please pay attention to the compatibility between the tested medium and the part of the product contacting the medium. When it is not clear, please consult our company.
- Please specify the appropriate measuring range and accuracy requirements when ordering. In order to ensure the stability and accuracy of the product, it is recommended that the measuring range of the pressure transmitter should be 120% of the actual measuring pressure range, and the maximum pressure should be within the measuring range.
3. When ordering the transmitter with LCD or LED junction box, the power supply of the transmitter should be no less than 15VDC.
- In order to ensure reliable outdoor operation, it is recommended that users order transmitters equipped with lightning protection. During the installation, ensure that the product and power supply are reliably grounded, which can reduce the damage probability of the transmitter caused by lightning.
- When selecting digital display products, the temperature range of transmitter working environment is – 30 ℃～70 ℃.
- The product is vertically installed on the site pressure interface, and the display screen is horizontally facing the observer.
- For media containing silt and sand, the transmitter head needs to take protective measures such as filtering measures to prevent the pressure tap from blocking or particles scratching the diaphragm.
- When using in inflammable and explosive environment, please install safety barrier as required, and cable connection shall be sealed and reliable. Tighten the junction box lid before energizing, and ensure that the inner chamber of the transmitter is isolated from the environment. When cleaning, overhauling or modifying parameters, the power must be cut off completely, then remove the transmitter and move it to the safe environment for processing. Live operation on site is strictly prohibited.
