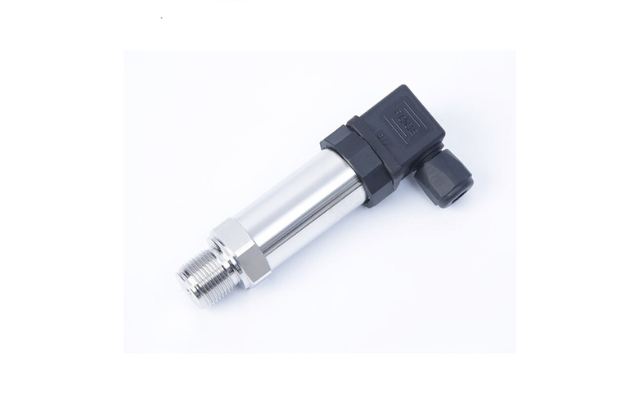

YURA101 Pressure transmitter
YURA101 Pressure transmitter
55 customer reviews
Piezoresistive Silicon Pressure Sensor
Application: Industrial Process control
Leak detection, Equipment monitoring
HVAC systems, Refrigeration systems
Fire suppression systems, Water treatment systems, Irrigation systems, Swimming pool systems
Measuring range: -100kPa~0~35kPa…100MPa
Process temperature: -40~85?, -40~150?
High temperature: -40~250?
Material: SS 316L, SS304
Thread: M20×1.5, G1/2, G1” etc.
The Yura101 pressure transmitter is a high-performance, high-reliability pressure sensor that is ideal for a wide range of industrial and commercial applications. With its high accuracy of 0.25% or 0.5%, the Yura101 pressure transmitter provides accurate and reliable measurements of pressure, even in the most demanding environments.
Yura101 pressure transmitter is made with a high-stable pressure sensor that is resistant to drift and vibration. This makes it ideal for use in applications where long-term stability and accuracy are critical. The transmitter is also housed in a durable stainless-steel 316L enclosure, making it suitable for use in harsh environments.
The Yura101 pressure transmitter is available in a variety of pressure ranges, from very low pressures to very high pressures. It is also available in a variety of electrical outputs, making it compatible with a wide range of controllers and data acquisition systems.
Features
Pressure measurement: Measuring range of -100kPa~0~35kPa…100MPa, this pressure transmitter can be used to measure a wide range of pressures, from very low to very high.
Pressure types: This pressure transmitter is available in gauge pressure (G), absolute pressure (A), and sealing gauge pressure (S) configurations, making it suitable for a variety of applications.
Output: This pressure transmitter offers both mA (current) and voltage RS485 output, making it compatible with a wide range of controllers and data acquisition systems.
Isolated structure: The isolated structure of this pressure transmitter makes it suitable for use with a variety of fluid media, including corrosive and flammable fluids.
Durable and reliable: The high-quality 316L stainless steel construction of this pressure transmitter makes it durable and reliable, even in the harshest industrial environments.
Mechanical Specifications
Diaphragm Material: Stainless Steel 316L
Titanium TA1(optional)
Process connection: Stainless Steel 316L
Stainless Steel 304
Sealing Ring: Nitrile Rubber / Viton(optional)
Electrical connection: DIN43650,
M12×1, Cable outlet,
Hirschmann connector with cable
Technical Parameters
| Pressure range | -100kPa…0~35kPa…100MPa |
| Pressure reference | Gauge pressure |
| Absolute pressure | |
| Sealed gauge pressure | |
| Accuracy | 0.5%FS |
| 0.25%FS | |
| Hysteresis | 0.1%FS |
| Repeatability | 0.1%FS |
| Temperature drift | 35kPa: ±2%FS (0℃～60℃) |
| ≥35Kpa ±1.5%FS (-20℃～85℃) | |
| Response time | ≤2ms |
| Overload pressure | 2X |
| Durability | 10000000 pressure cycles |
| Ambient temperature | -20℃～85℃ |
| Medium temperature | -30℃～85℃ |
| -30℃～150℃ | |
| -30℃～250℃ | |
| Storage temperature | -40℃～125℃ |
| Insulation resistance | ≥100MΩ/250VDC |
| Anti-vibration | 20g, 25Hz～2kHz |
| Shock resistance Shock | 20g/1ms |
| Protection grade | IP65, IP67 |
| Medium compatibility | Stainless steel 316L |
| Nitric rubber | |
| Flour elastomer |
Environmental Conditions
Protection Class: IP65, IP67
Humidity: (50% ± 10%) Relative Humidity
Ambient Pressure: (86-106) kPa
Vibration: No change observed at 10gRMS, (20-2000) Hz.
Constant Acceleration: Can withstand 100g with an 11ms duration.
Media Compatibility: Compatible with liquids or gases that are also compatible with 316L stainless steel and Nitrile Rubber / Viton(optional).
Range
| Pressure range Gauge | |||||
| Code | Bar | Code | Psi | Code | inWC |
| A1 | 0 … 0.05 | A23 | 0 … 1 | A41 | 0 … 20 |
| A2 | 0 … 0.1 | A24 | 0 … 5 | A42 | 0 … 40 |
| A3 | 0 … 0.16 | A25 | 0 … 15 | A43 | 0 … 60 |
| A4 | 0 … 0.25 | A26 | 0 … 25 | A44 | 0 … 80 |
| A5 | 0 … 0.4 | A27 | 0 … 30 | A45 | 0 … 100 |
| A6 | 0 … 0.6 | A28 | 0 … 50 | A46 | 0 … 120 |
| A7 | 0 … 1 | A29 | 0 … 100 | A47 | 0 … 150 |
| A8 | 0 … 1.6 | A30 | 0 … 160 | A48 | 0 … 200 |
| A9 | 0 … 2.5 | A31 | 0 … 200 | A49 | 0 … 250 |
| A10 | 0 … 4 | A32 | 0 … 300 | A50 | 0 … 400 |
| A11 | 0 … 6 | A33 | 0 … 500 | ||
| A12 | 0 … 10 | A34 | 0 … 1,000 | ||
| A13 | 0 … 16 | A35 | 0 … 1,500 | ||
| A14 | 0 … 25 | A36 | 0 … 2,000 | ||
| A15 | 0 … 40 | A37 | 0 … 3,000 | ||
| A16 | 0 … 60 | A38 | 0 … 5,000 | ||
| A17 | 0 … 100 | A39 | 0 … 10,000 | ||
| A18 | 0 … 160 | A40 | 0 … 15,000 | ||
| A19 | 0 … 250 | ||||
| A20 | 0 … 400 | ||||
| A21 | 0 … 600 | ||||
| A22 | 0 … 1,000 | ||||
| Pressure range Absolute type | |||||
| Code | Bar | Code | Psi | Code | inWC |
| A51 | 0 … 0.1 | A64 | 0 … 5 | A73 | 0 … 40 |
| A52 | 0 … 0.16 | A65 | 0 … 15 | A74 | 0 … 60 |
| A53 | 0 … 0.25 | A66 | 0 … 25 | A75 | 0 … 80 |
| A54 | 0 … 0.4 | A67 | 0 … 30 | A76 | 0 … 100 |
| A55 | 0 … 0.6 | A68 | 0 … 50 | A77 | 0 … 120 |
| A56 | 0 … 1 | A69 | 0 … 100 | A78 | 0 … 150 |
| A57 | 0 … 1.6 | A70 | 0 … 150 | A79 | 0 … 200 |
| A58 | 0 … 2.5 | A71 | 0 … 200 | A80 | 0 … 250 |
| A59 | 0 … 4 | A72 | 0 … 300 | A81 | 0 … 400 |
| A60 | 0 … 6 | ||||
| A61 | 0 … 10 | ||||
| A62 | 0 … 16 | ||||
| A63 | 0 … 25 | ||||
| Pressure range Vacuum and negative to positive pressure | |||||
| Code | Bar | Code | Psi | Code | inWc |
| A82 | -0.025 … +0.025 | A106 | -1 … 0 | A115 | -10 … +10 |
| A83 | -0.05 … 0 | A107 | -30 inHg … 0 | A116 | -20 … 0 |
| A84 | -0.05 … +0.05 | A108 | -30 inHg … +15 | A117 | -20 … +20 |
| A85 | -0.05 … +0.15 | A109 | -30 inHg … +30 | A118 | -40 … 0 |
| A86 | -0.05 … +0.2 | A110 | -30 inHg … +60 | A119 | -40 … +40 |
| A87 | -0.05 … +0.25 | A111 | -30 inHg … +100 | A120 | -50 … +50 |
| A88 | -0.1 … 0 | A112 | -30 inHg … +160 | A121 | -60 … 0 |
| A89 | -0.1 … +0.1 | A113 | -30 inHg … +200 | A122 | -75 … +75 |
| A90 | -0.15 … +0.15 | A114 | -30 inHg … +300 | A123 | -80 … 0 |
| A91 | -0.16 … 0 | A124 | -100 … 0 | ||
| A92 | -0.2 … +0.2 | A125 | -100 … +100 | ||
| A93 | -0.25 … 0 | A126 | -120 … 0 | ||
| A94 | -0.3 … +0.3 | A127 | -125 … +125 | ||
| A95 | -0.4 … 0 | A128 | -150 … 0 | ||
| A96 | -0.5 … +0.5 | A129 | -200 … +200 | ||
| A97 | -0.6 … 0 | A130 | -250 … 0 | ||
| A98 | -1 … 0 | ||||
| A99 | -1 … +0.6 | ||||
| A100 | -1 … +1.5 | ||||
| A101 | -1 … +3 | ||||
| A102 | -1 … +5 | ||||
| A103 | -1 … +9 | ||||
| A104 | -1 … +15 | ||||
| A105 | -1 … +24 | ||||
Ordering
| YURA101 | Piezoresistive Silicon Pressure Transmitter | |||||||
| Code | Pressure Range | |||||||
| A | Please refer Range chart | |||||||
| AXXX | Custom | |||||||
| Code | Pressure type | |||||||
| B1 | Gauge | |||||||
| B2 | Absolute | |||||||
| B3 | Sealed gauge | |||||||
| Code | Output | |||||||
| C1 | 4～20mA | C4 | 0.5～4.5VDC Radiation metric | |||||
| C2 | 0～5VDC | C5 | 0.5～4.5V non-radiation metric | |||||
| C3 | 0～10VDC | C5 | 1～10VDC | |||||
| CX | Custom | C6 | RS-485 Communication | |||||
| Code | Accuracy | |||||||
| D1 | 0.5%FS | |||||||
| D2 | 0.25%FS | |||||||
| Code | Size | Code | Size | |||||
| E1 | G1/2″ | E4 | 1/2″ NPT | |||||
| E2 | G1/4″ | E5 | 1/4″ NPT | |||||
| E3 | M20X1.5 | E6 | M14X1.5 | |||||
| EX | Special size | E7 | 1/4″ NPT Female | |||||
| Code | Electric connection | |||||||
| F11 | DIN43650 Connector | |||||||
| F12 | M12×1 | |||||||
| F13 | Cable outlet | |||||||
| FX | Custom connection | |||||||
| Code | Temperature range | |||||||
| G1 | -30℃～85℃ | |||||||
| G2 | -30℃～150℃ | |||||||
| G3 | -30℃～250℃ | |||||||
| GX | Special | |||||||
| YURA101 | A1 | B1 | C1 | D1 | E1 | F1 | G1 | |
